PE102-RTU Alarm Annunciator

The PE102-RTU Annunciator Series monitors the Alarm condition of 8, 16 or 24 Dry Contact inputs. Depending on the model, input voltages of 48, 24, or 12 Vdc can be handled. Alarms can be triggered by the presence or absence of these voltages or contacts.

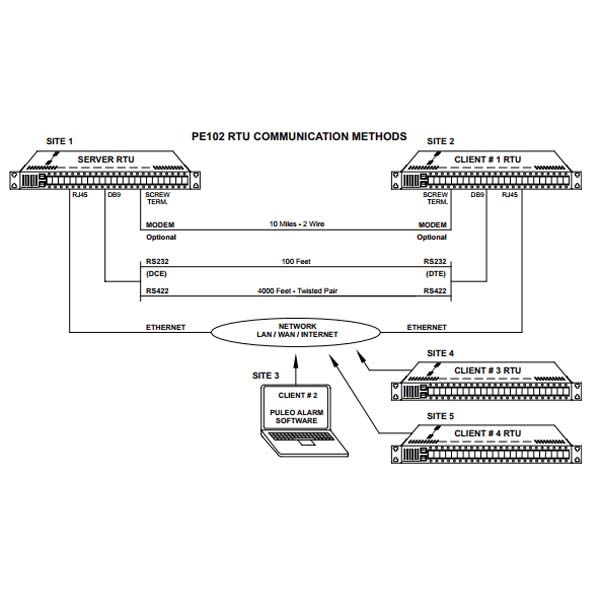

The RTU’s are available with Server or Client Configurations with built-in Ethernet and RS232/422 ports. An optional long-distance dedicated Modem is available as an internal option.

RTU Servers can communicate with up to (5) Clients (six with the modem option). They can be any combination of RTU Clients and Computer Clients running the included SDP Puleo Alarm software.

Puleo Electronics uses a superior two LED sequence that allows operations personnel to see the real time Alarm status without pushing any buttons. Momentary Alarms are latched with a flashing Green LED, while active Alarms are displayed on a Red LED.

OPTIONAL MODEM
The PE1300 is a single card RS232 asynchronous frequency shift keying voiceband modem which can send or receive data from up to 10 miles away over a pair of 24 AWG copper wires connected to screw terminals on the rear panel of the unit.


• Capable of RS232/RS422 and Ethernet communications
• Chassis size 19″ W x 1¾” H x 13″ D
• Alarm input polarity common in groups of 4 points

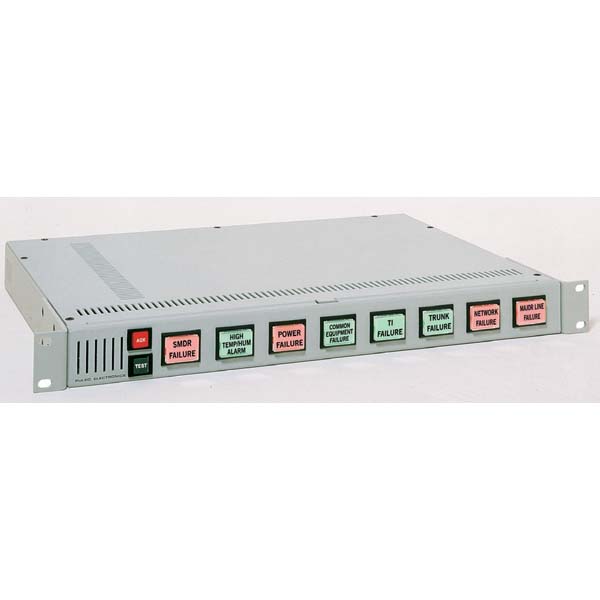

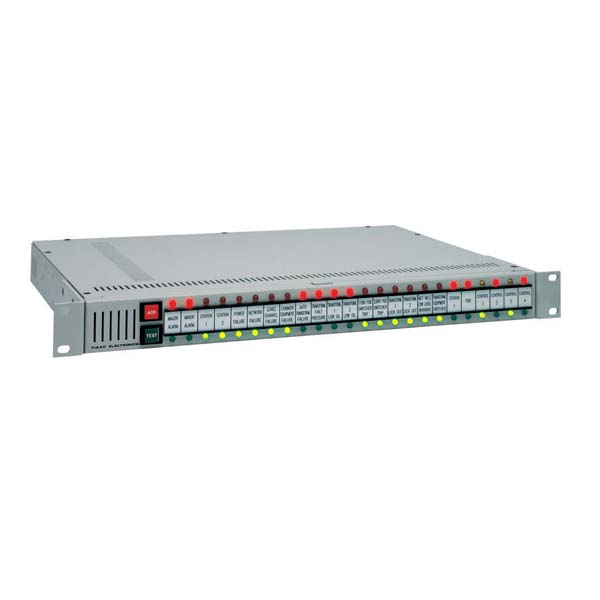

• Monitors 8, 16 or 24 points
• Sequence No. 1 or No. 3
• Dry contact closure output for each input monitored.
• Relay interface for maximum isolation and noise immunity
• Audible disable switch
• Compact design with self-contained flasher and audible alarm
• Common alarm relay output (contacts transfer when any point goes flashing, resets when acknowledged)
• Power fail relay output

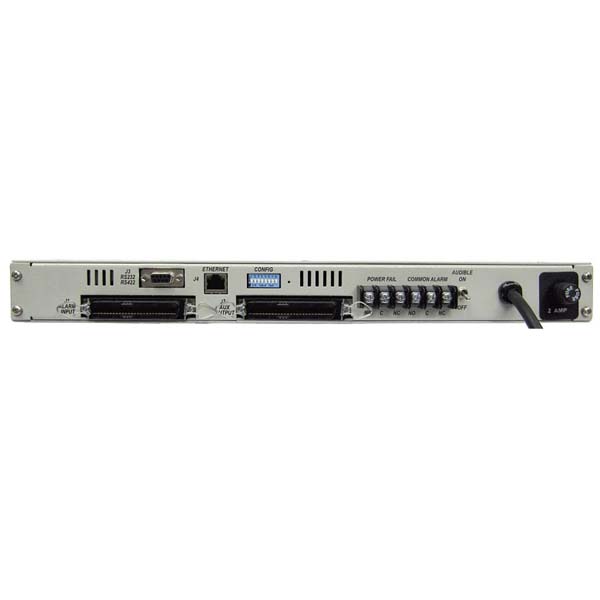

• Termination by 50 Pin AMP Champ® connector
• LEDs Used on all displays including legend windows
• Power input 12, 24, 48 or 125 Vdc, 115 or 220 Vac
• Alarm Inputs: isolated contacts or 12, 24, or 48 Vdc
• For rack, panel or desk mount
