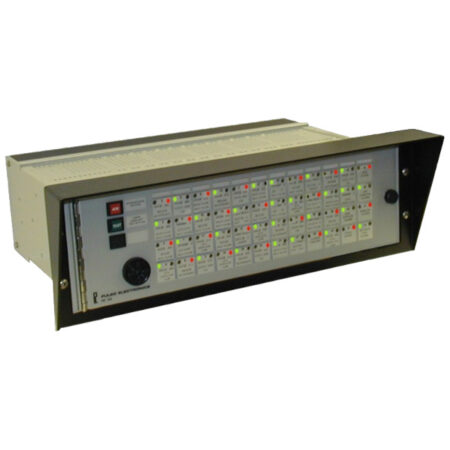

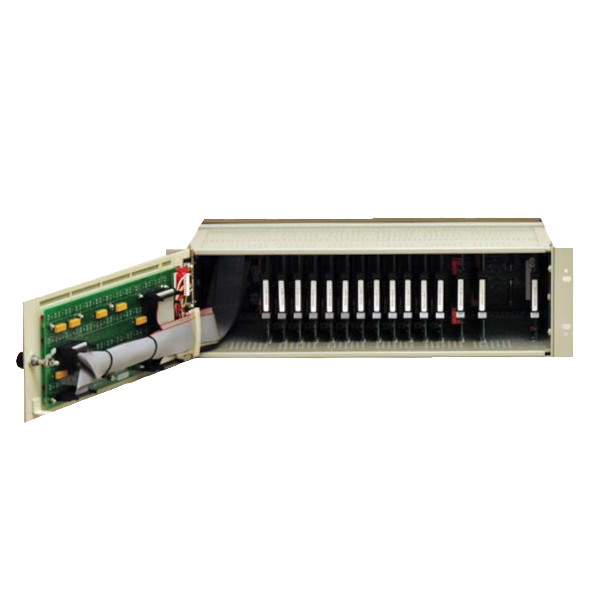

PE103 Alarm Annunciator

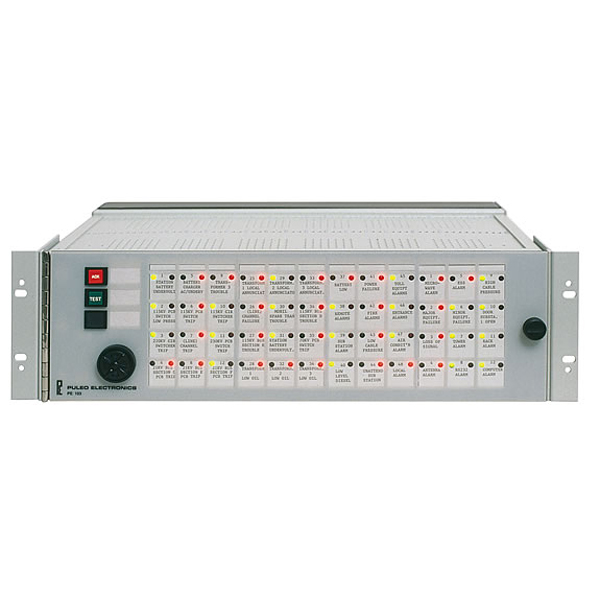

The PE103 is an alarm annunciator designed for industrial applications. It monitors the status of up to 48 alarm contacts. The isolated alarm contacts can be configured as normally open or normally closed. The status of each alarm contact is indicated by a Green LED that remains steady while the alarm is untriggered and a Red LED that flashes when the alarm is triggered, even momentarily, until it is acknowledged. Each alarm contact can be assigned to one of eight alarm groups.

The power input can be 12/24/48/125VDC or 115/220VAC. The alarm contacts can be internally or externally wetted. If the input voltage is 12/24/48VDC, then the contact voltage is the same as the input voltage. If the input voltage is 125VDC or 115/220VAC, then the contact voltage is 12VDC.

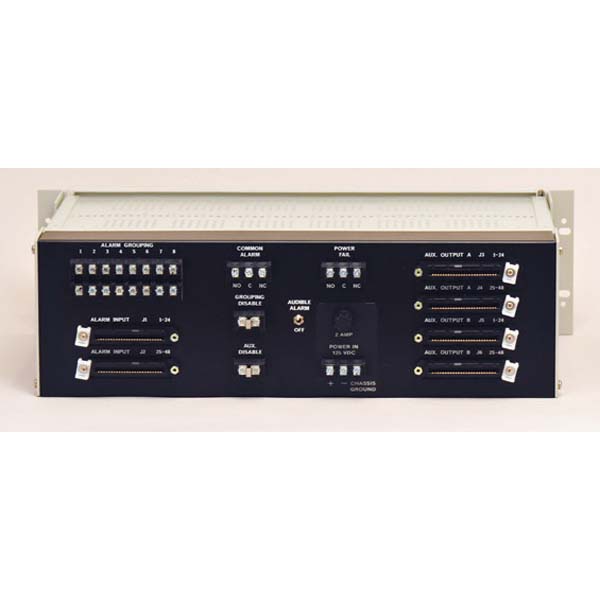

The Common Alarm Relay indicates an active alarm. The eight Group Alarm Relays each indicate an active alarm in the corresponding alarm group. The power fail relay indicates power failure. All relays are accessible via screw terminals located on the back panel.

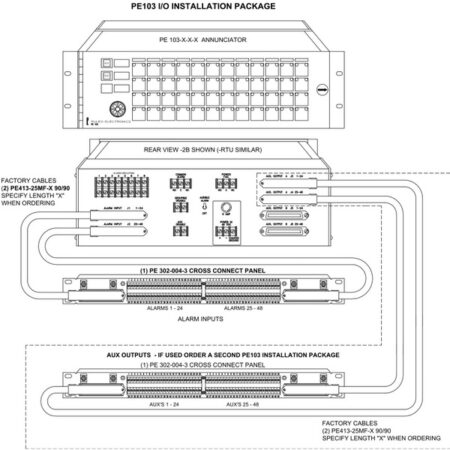

Two sets of Auxiliary Outputs are provided as isolated relay contacts that can be used to transmit the status of the alarm contacts to auxiliary equipment. They can be accessed via 50-pin connectors located on the back panel with each set of auxiliary outputs acessible via two 50-pin connectors.

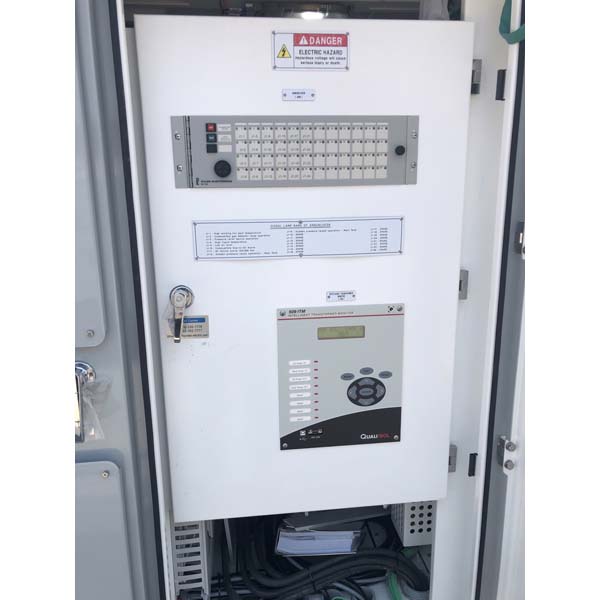

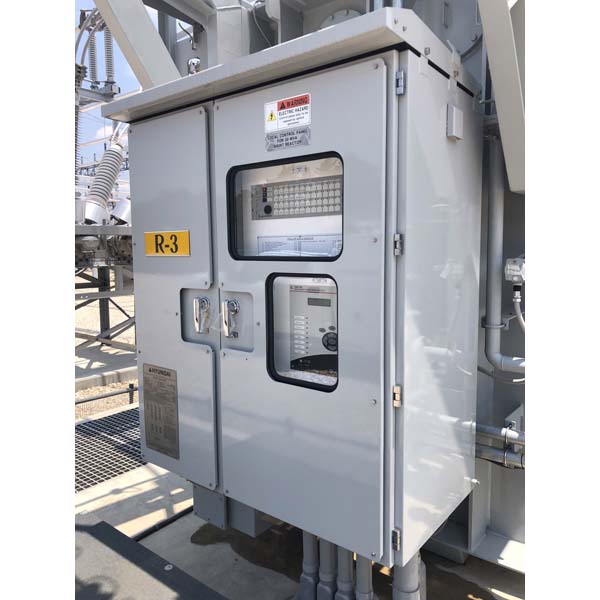

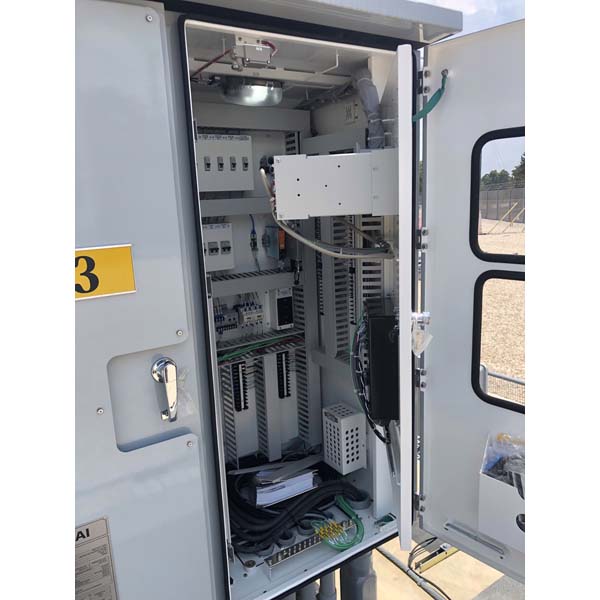

The PE103 can be mounted in a 19″ or 23″ rack or panel mounted as is, or desktop mounted with additional desk mount legs and handles.



PRICE: $2,950.00

Add to wishlist
SKU: N/A Category:

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

The PE103-48-2B Alarm Annunciator monitors the status, and annunciates the alarm condition of any critical function that can be transduced to 48, 24, 12Vdc, or isolated contacts. Status changes, even if only momentary are detected and annunciated by an audible alarm and flashing light. The status of monitored points is indicated by LEDs.

Power input options are 12Vdc, 24Vdc, 48Vdc, 110Vac, or 220Vac. If power input is 12Vdc, no power supply is required. Other models require either a DC-DC converter or an AC-DC power supply to convert input power supplied by user to 12Vdc.



PRODUCT FEATURES

  • Monitors up to 48 points
  • Chassis size 19″ W x 5¼” H x 13″ D
  • 2 Auxiliary relay output for each point monitored
  • Legends can be field printed with CD-supplied template and inserted behind overlay panel
  • Alarm input polarity common in groups of 4 points
  • Alarm Groupings: Any alarm point can be assigned to any or all of 8 groups
  • Each group provides a relay contact output
  • Contacts are made available to user by screw terminals on back panel
  • Auxiliary disable screw terminals
  • Group disable screw terminals



TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

  • NO or NC alarm inputs
  • 2 Dry contact closure output for each input monitored
  • Relay interface for maximum isolation and noise immunity
  • Audible disable switch
  • Compact design with self-contained flasher and audible alarm
  • Common alarm relay output (contacts transfer when any point goes flashing, resets when acknowledged)
  • Power fail relay output
  • Termination by 50 Pin AMP Champ® connector
  • LEDs Used on all displays including legend windows
  • Power input 12, 24, 48 or 125 Vdc, 115 or 220 Vac
  • Alarm inputs: isolated contacts or 12, 24, or 48 Vdc
  • For rack, panel or desk mount



TECHNICAL DOCUMENTS

TECHNICAL DOCUMENTS

Technical documents may be downloaded if you have logged in or registered

PE103 Technical Documents


Accessories
