PE103-RTU Alarm Annunciator

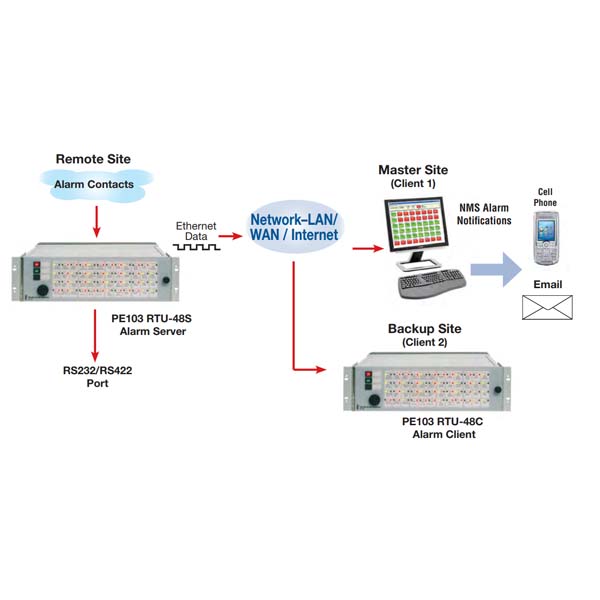

The PE103-RTU Annunciator is available with built-in Ethernet and RS232/422 communications for RTU capabilities. The RTU Alarm Server can report 4 through 48 (in increments of 4) individual alarms or 8 group alarms such as Critical, Major and Minor. Servers support up to 4 Ethernet clients and 1 Serial port client. Our SDP Computer Alarm software is included at no extra charge.

In addition, new Opto-Isolator Inputs allow the alarms to be triggered from a wide range of voltages or dry contacts. These versatile and compact RTU Annunciators make it easy to create plug & play Alarm Reporting Systems.

PRICE: $2,950.00

Add to wishlist
SKU: N/A Category:

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

PRODUCT FEATURES

  • RTU/Annunciator Server for 4 through 48 (in increments of 4) Alarm Points
  • Ethernet and RS232/RS422 Ports
  • SDP Alarm Software
  • 1 RU
  • 12 Vdc, 24 Vdc, 48 Vdc, 125 Vdc, 110 Vac, or 220 Vac Power Input

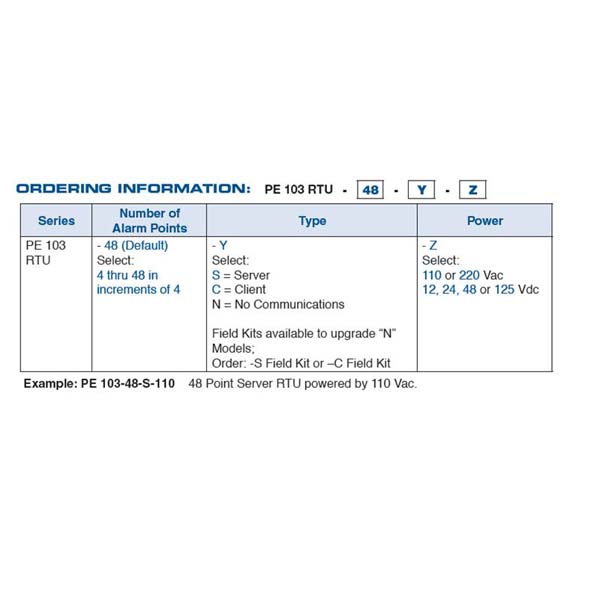

PRODUCT CONFIGURATIONS

  • Alarm Server with encoder technology
  • Alarm Client with decoder technology
  • No Communications (Field upgradable for future expansion)

Server configurations can handle up to 5 Clients

  • 4 Ethernet Clients
  • 1 RS232/RS422 Client



TECHNICAL DOCUMENTS

TECHNICAL DOCUMENTS

Technical documents may be downloaded if you have logged in or registered

PE103-RTU Technical Documents

Accessories
