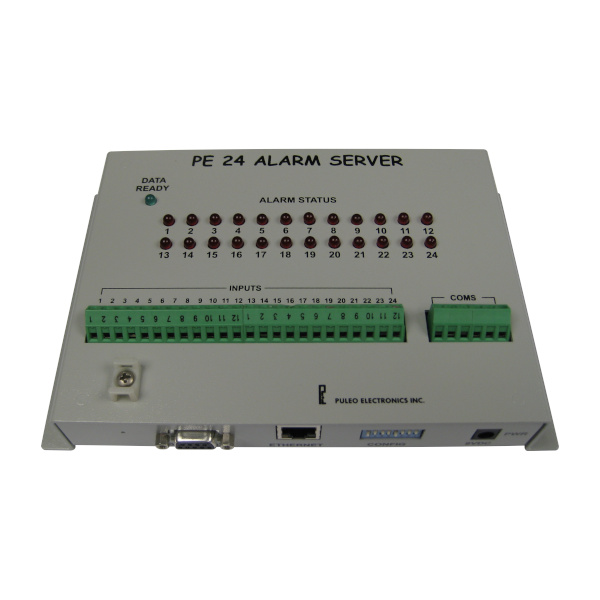

PE24 Alarm Server
The PE 24 Alarm Server monitors the Alarm condition of up to 24 Dry Contact inputs with Red Status LED’s for each Input. A Flashing Green Data Ready LED indicates the unit has Power and is Transmitting Alarm Data. This compact Wall Mounted unit is designed to operate from the included 110 – 240 Vac Wall supply. It can also operate directly from 8 – 12Vdc power or with optional 48 or 125Vdc Power Supplies.

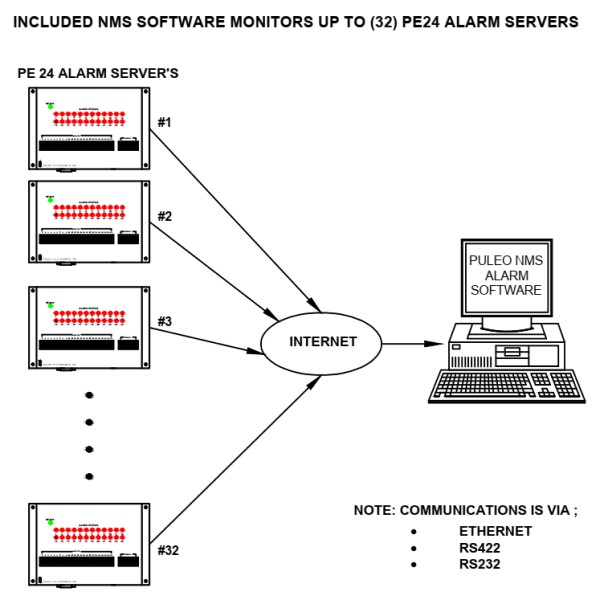

The PE 24WM Alarm Server can communicate with up to (5) Clients (four Ethernet + one Serial). They can be any combination of Computer Clients running the included Puleo NMS Alarm software or
RTU Clients.
The PE 24 Alarm Server ships with a CD that includes all required software and documentation.
PRICE: $895.00
FEATURES
FEATURES
• Monitors 24 Normally Open or Normally Closed Alarm Points with Red Status LED’s.
• Flashing Green Data Ready LED indicates Power & Transmitting Alarm Data.
• Common Alarm Relay Output
• Handy Pull Out Index Card for Alarm Labels

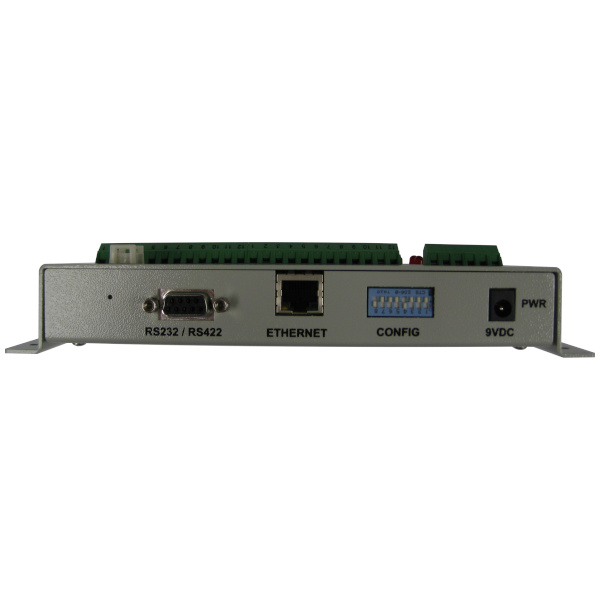

• Ethernet IP and RS232 / RS422 Serial Communications.
• Simultaneously Supports up to (4) Ethernet Clients & (1) Serial Client.
• NMS Alarm Monitoring Software included with offsite notification via Texting and Email.
• Can also be used with Puleo RTU Client Annunciators.
• Compact Wall Mount Design.
• Easy Screw Terminal Wiring for Alarm Inputs with Tie Wrap Support.
• 100 – 240 Vac UL approved external low voltage Power Source;
Optional 48 Vdc and 125 Vdc Power Sources available.
